P.I.C
Pole Inspection Camera

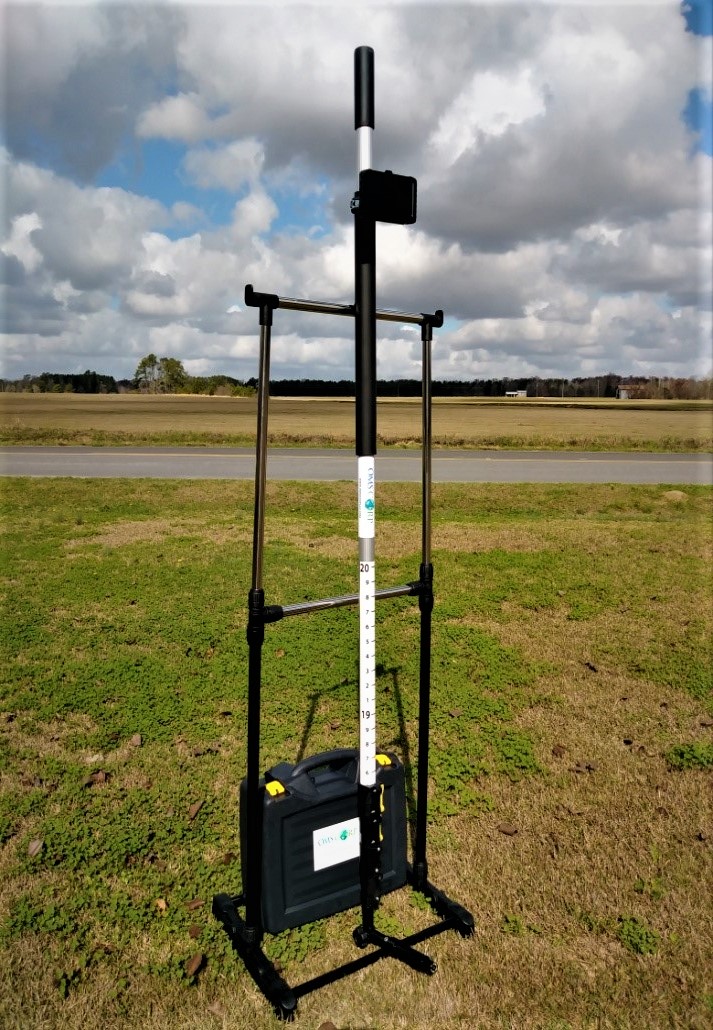

The P.I.C. (Pole Inspection Camera) is a portable,
wireless inspection camera system. Telescopic
capabilities enable the user to televise manholes,
wetwells, catch basins, and culvert pipes from 3’ to
20’ deep quickly and easily. Measurements on the
pole provide handy reference points for the operator.
The camera provides a 720 x 480 pixel color display.
The monitor can record on a readily available Micro
SD card and is compatible with Windows and Mac
operating systems. Lightweight – less than 5 pounds
the system is agile and easily maneuvered.
Wireless Inspection Camera
Frequency 2.4 mhz
RF Output Power 50mW (300 feet line of sight)
Total Pixels PAL: 720 x 576 NTSC: 720 x 480
Minimum Illumination 0.01 Lux / F1.2
Lens Focus 1 – 100 cm (adjustable)
View Angle 90 degrees
Light Source LED 200mcd x 6 Range of LED: 5 meters
IR/940nm 70mW x 6 Range of IR940 lamp: 5 meters
IR/850nm 70mW x 6 Range of IR850 lamp: 8 meters
Li-battery Capacity 380 mah
Working Time 1.5 hours
Voltage DC 5V
Weight 1 ounce
Size 0.75 inches
Wireless Mini DVR
Photo Format JPG/JPEG
Storage External SD card TF card1 – 32 GB
1 – 32 GBOperating System PC Windows & Mac OS
Port USB 2.0
Language Multiple
Power Voltage DC 5V
AC Adapter DC5V2a
2a Built in Battery Li-battery 3200Mah
Operating Time (approx) 5 hours
Size 3.5 x 5 x 0.75 inches
Weight 0.5 pounds
